| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Conductor Material | High-conductivity Electrolytic Copper |
| Cooling Method | Internal Water Circulation |
| Space Requirement | Compact (no Air Gap Needed) |
| Click to view more | |
Product Details
Inner Hose Material
Rubber Or Silicone
Outer Jacket Material
Heat-resistant Rubber, Silicone, Or Fiberglass Braid
Terminals Type
Copper Lugs Or Customized Water-cooled Connectors
Water Ports
Inlet And Outlet Fittings For Coolant Connection

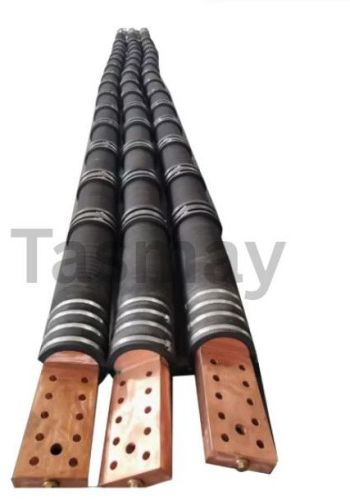

Water Cooled Cables are specially designed high-current flexible conductors that use a water circulation system to actively remove heat from the cable during operation. These cables are essential in high-temperature, high-load industrial environments—particularly in induction furnaces, arc furnaces, and electrolytic plants—where natural air cooling is insufficient to maintain safe operating temperatures.
Key Features
- Active Cooling via Internal Water Flow
- Handles Extremely High Currents
- Controls Thermal Expansion & Heat Build-Up
- Flexible for Moving Connections
- Protected Against Mechanical and Electrical Stress
Working Principle
- As electrical current flows through the cable, it generates heat. In water-cooled cables, coolant water is circulated through an internal channel, effectively absorbing and carrying away this heat, which helps:
- Maintain conductor performance
- Protect surrounding components
- Extend the life of the cable
Applications
- Induction Melting & Heating Furnaces
- Electric Arc Furnaces (EAF)
- Resistance Welding Equipment
- Electrolysis and Electroplating Systems
- Heavy Industrial Machinery in Steel, Glass, and Mining Sectors
Advantages
- Superior Heat Dissipation for High-Load Systems
- Extended Cable Life in Harsh Environments
- Minimizes Thermal Degradation of Conductors
- Supports Continuous Duty Applications
- Customizable Lengths, Hose Sizes, and Connectors
Safety and Maintenance Tips
- Ensure clean, non-corrosive water supply to prevent scaling or blockages
- Regularly inspect for leakage or hose wear
- Monitor water flow and pressure for optimal cooling efficiency
Conclusion
Water Cooled Cables are critical components for high-power electrical systems operating under extreme thermal loads. Their ability to maintain low conductor temperatures during intense operation makes them indispensable for industrial heat-processing equipment and electrometallurgical systems. With proper installation and maintenance, they deliver safe, efficient, and long-lasting performance.
Need technical guidance or custom sizing?
Contact us today to discuss your requirements. Our team will assist you with technical details, price quotes, and delivery timelines.
